While reparing the camshaft it is necessary to replace the old bearings lid screws for the new ones. Screws in our kits are made with prestress specially for these situations. If you will reinstall the old screws it may become under tighten and that will cause problems. There is a matching screw set for each PD engine:

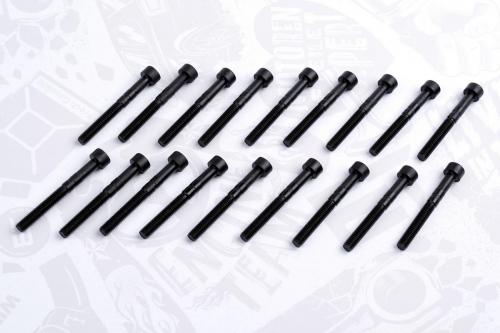

Screws for mounting the camshaft bearing bloc M6x54mm, OE: 038103714 / 038103714G

  • BS0001 – set (10pcs) four cylinder engines Škoda, VW, Audi, Seat 1,9 / 2,0 / 2,5 PD
  • BS0010 – set (8pcs) for five cylinder engines VW Multivan / Transporter, AXD, AXE, BAC, 2003+
  • BS0006 – set (8pcs) for three cylinder engines Škoda, VW, Audi, Seat 1,4 PD

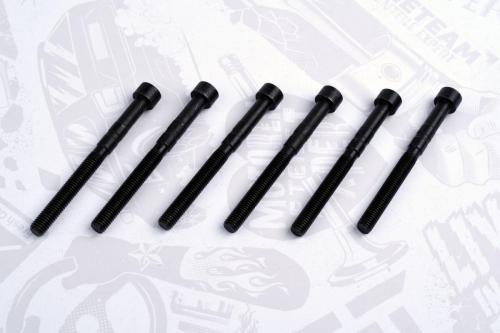

Screws for rocker arm shaft – M8x90mm – 038103714A

  • BS0003 – set (6pcs) for three cylinder engines Škoda, VW, Audi, Seat,  PD, 2000+
  • BS0004 – set (8pcs) for four cylinder engines Škoda, VW, Audi, Seat,  PD, 2000+
  • BS0005 – set (10pcs) for five cylinder engines VW Transporter, PD, 2003+

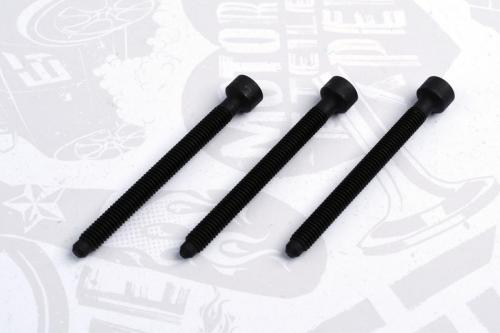

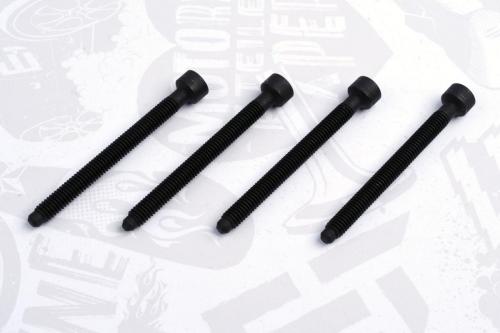

Adjustment screw for injector pump – M6x64MM – 038103385A

  • BS0007 – set (3pcs) for three cylinder engines Škoda, VW, Audi, Seat 1,4
    BS0008 – set (4pcs) for four cylinder engines Škoda Roomster / Superb, VW Golf / Transporter, Audi, Seat 1,9 / 2,0 PD, 2003+

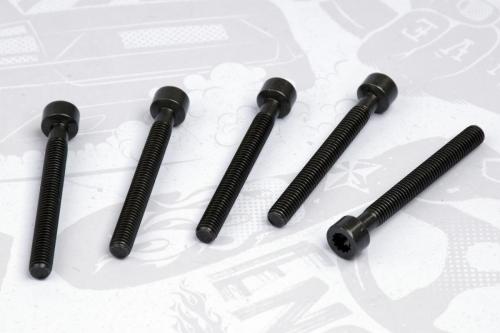

Adjustment screw for injector pump – M6x55mm – 070103385A

  • BS0009 – set (5pcs) for five cylinder engines VW Tuareg / Transporter / Multivan 2,5 TDI PD, AXD, BLJ, BLK, 2003+
