HV0368 – camshaft kit ET Engineteam – Audi A4, VW Passat 1,9/2,0 TDI PD, 2004+, steel camshaft
Camshaft kit HV0368 ET Engineteam for Audi A4, VW Passat 1,9/2,0 TDI PD, 2004+, steel camshaft. A complete kit for camshaft replacement on Pumpe-Düse engines.
Buy at K MOTORSHOPAudi A4, VW Passat 1,9/2,0 TDI PD, 2004+, steel camshaft
Show all compatible vehiclesTechnical parameters
| Material | Steel |
|---|---|
| Engine codes | BGW, BHW, BKE, BPW, BRB |

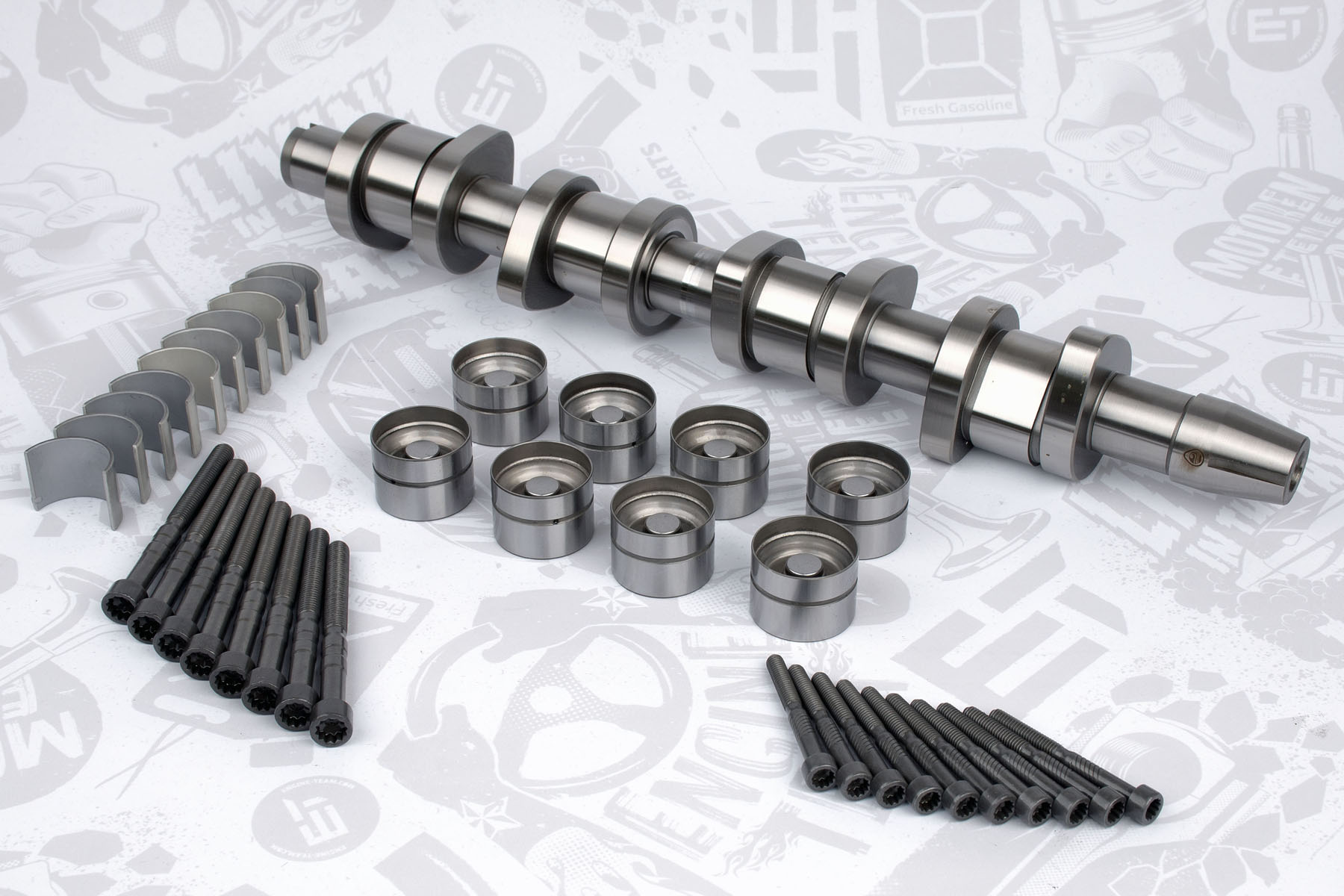

Kit contents
- 1× Camshaft ET ENGINETEAM
- 1× Bolt Set, bearing block (camshaft) ET ENGINETEAM
- 1× Camshaft Bearing ET ENGINETEAM
- 8× Tappet ET ENGINETEAM
- 1× Bolt, rocker arm shaft ET ENGINETEAM
OE numbers (10)
| VW | 038109101AF, 038103714G, 038103714, 038103673A, 038103673BGLB, 038103673CGLB, 038103673C, 038103673B, 038109309C, 038103714A |
|---|
Description
Camshaft kit with steel cam ET Engineteam for Pumpe - Düse (pump-nozzle system) engines 1.9 / 2.0 TDi. Installation for Audi A4, VW Passat with BGW, BHW, BKE, BRB engines. OE: 038103673A 038103673B, 038103673C, 038109101AF, 038109309C, 038103673BGLB, 038103673CGLB, 038103714G, 038103714, 038103714A.
The Pumpe - Düse injection system requires the perfect synchronicity of all engine components, including the camshaft system. Therefore manufacturers recommend replacing all components at the same time when replacing the cam and related parts. If only the shaft itself is replaced, other already worn components will not work properly with the new cam. The HV0368 cam kit contains all the necessary components for safe replacement and trouble-free operation.
Kit HV0368 includes:

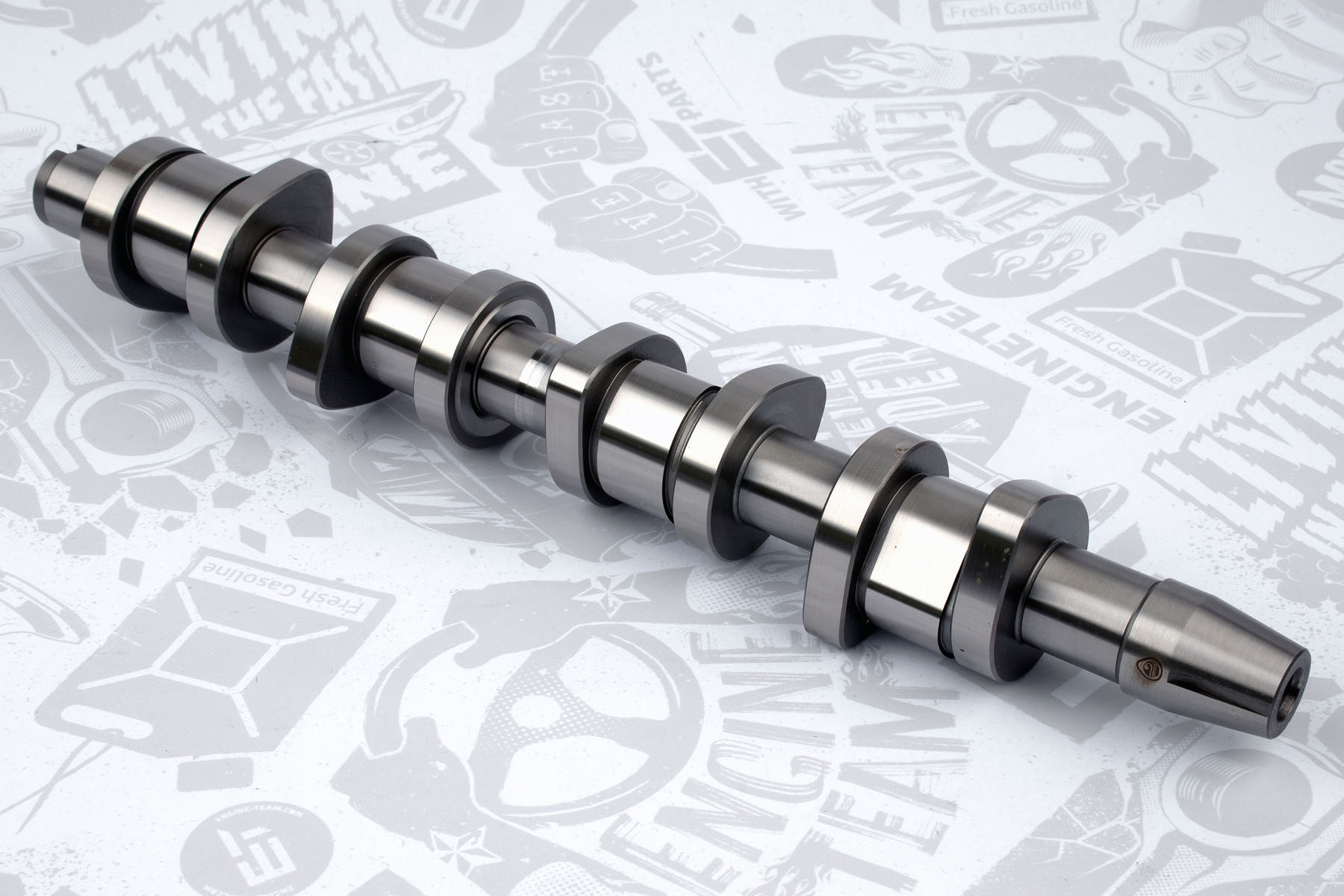

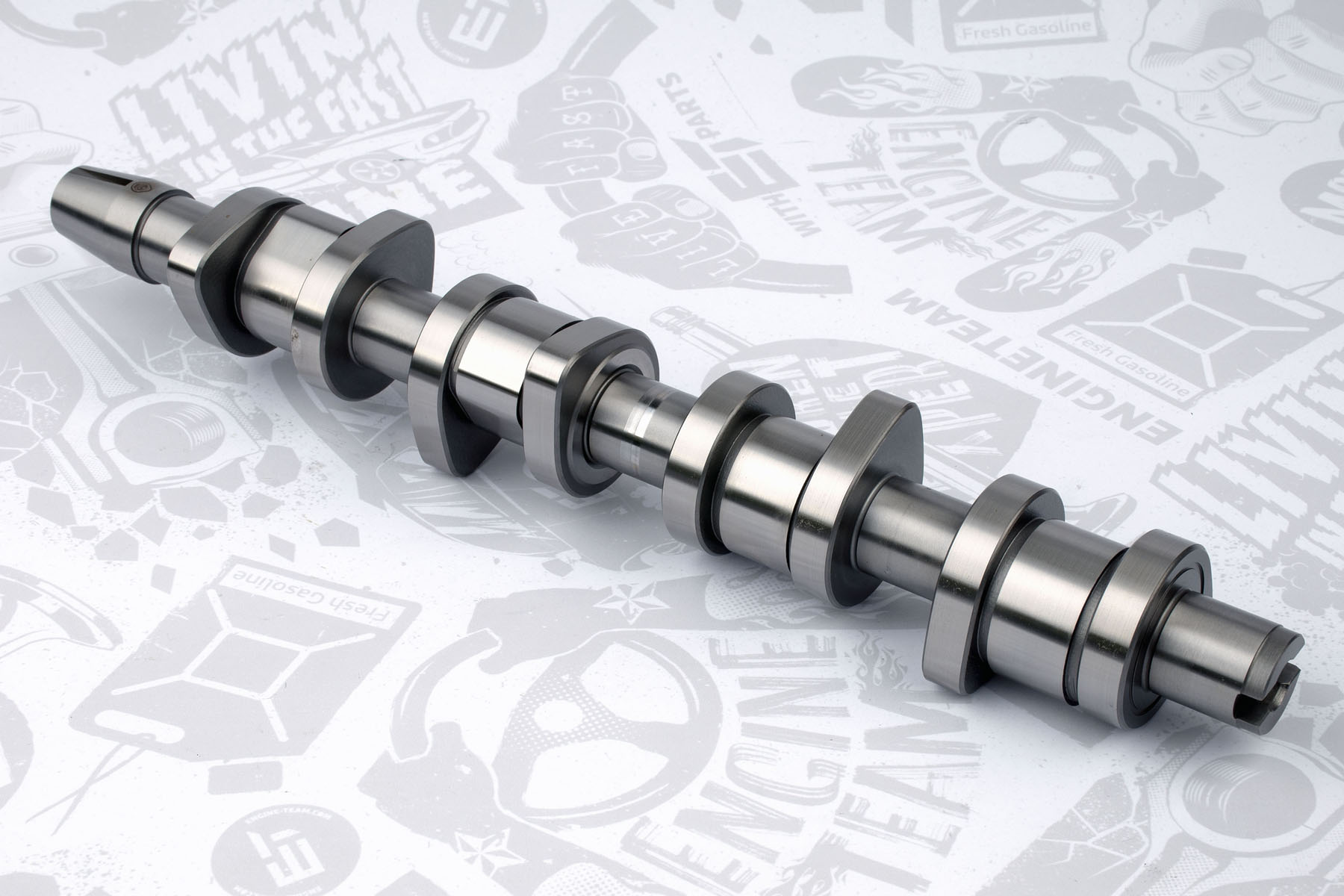

- Steel camshaft HV0367 – OE: 038109101AF
- Camshaft bearing LV0001 (set) – OE: AEC510067STD, CS543CPSTD, N147/5, N147/5STD, 038103673A, 038103673B, 038103673BGLB, 038103673C, 038103673CGLB, 63504200, 63-5042-00,733903
- Hydraulic tappet ZH0089 – OE: XM21-6500-BA, ZH0041, 038109309C, 1426035
- Rocker arm rod bolts BS0004 (8pcs) – OE: 038103714A
- Camshaft housing bolts BS0001 (10pcs) – OE: 038103714, 038103714G
Vehicle applications
AUDI (5 models)
A4 B6 11/2000 – 12/2005
| Type | Displacement | Power | Production years | Engine codes |
|---|---|---|---|---|
| 1.9 TDI | 1896 ccm | 85 kW / 116 HP | 06/2004 – 12/2004 | BKE |
A4 B6 Avant 02/2000 – 12/2005
| Type | Displacement | Power | Production years | Engine codes |
|---|---|---|---|---|
| 1.9 TDI | 1896 ccm | 85 kW / 116 HP | 06/2004 – 12/2004 | BKE |
A4 B7 11/2004 – 01/2009
| Type | Displacement | Power | Production years | Engine codes |
|---|---|---|---|---|
| 1.9 TDI | 1896 ccm | 85 kW / 116 HP | 11/2004 – 06/2008 | BKE, BRB |
| 2.0 TDI | 1968 ccm | 103 kW / 140 HP | 11/2004 – 06/2008 | BPW |
| 2.0 TDI quattro | 1968 ccm | 103 kW / 140 HP | 01/2006 – 06/2008 | BPW |
A4 B7 Avant 11/2004 – 11/2008
| Type | Displacement | Power | Production years | Engine codes |
|---|---|---|---|---|
| 1.9 TDI | 1896 ccm | 85 kW / 116 HP | 11/2004 – 06/2008 | BKE, BRB |
| 2.0 TDI | 1968 ccm | 103 kW / 140 HP | 11/2004 – 06/2008 | BPW |
| 2.0 TDI quattro | 1968 ccm | 103 kW / 140 HP | 01/2006 – 06/2008 | BPW |
A4 B7 Convertible 01/2002 – 01/2010
| Type | Displacement | Power | Production years | Engine codes |
|---|---|---|---|---|
| 2.0 TDI | 1968 ccm | 103 kW / 140 HP | 01/2006 – 03/2009 | BPW |
VW (2 models)
PASSAT B5.5 10/2000 – 12/2005
| Type | Displacement | Power | Production years | Engine codes |
|---|---|---|---|---|
| 2.0 TDI | 1968 ccm | 100 kW / 136 HP | 12/2003 – 05/2005 | BGW, BHW |
PASSAT B5.5 Variant 09/2000 – 08/2005
| Type | Displacement | Power | Production years | Engine codes |
|---|---|---|---|---|
| 2.0 TDI | 1968 ccm | 100 kW / 136 HP | 12/2003 – 05/2005 | BGW, BHW |
